Stainless steel checkered plate
Stainless steel chequered plates, also known as stainless steel chequer plates or stainless steel checker plates, are lightweight metal plates with good anti-slipping and decorative features. One side of a stainless steel chequered plate is raised regular diamonds or lines, while the other side is plane. The raised design reduces the risk of slipping, thus making stainless steel chequered plates ideal for stairs, walkways and ramps. The features of corrosion resistance and weather resistance with aesthetic surface treatment make it suitable for architectural outdoor uses.
+86 18021167155
cindy@gangyasteel.com
8618021167155
Get A Quote

→ Product Description

Stainless steel chequered plates, also known as stainless steel chequer plates or stainless steel checker plates, are lightweight metal plates with good anti-slipping and decorative features. One side of a stainless steel chequered plate is raised regular diamonds or lines, while the other side is plane. The raised design reduces the risk of slipping, thus making stainless steel chequered plates ideal for stairs, walkways and ramps. The features of corrosion resistance and weather resistance with aesthetic surface treatment make it suitable for architectural outdoor uses.



Product Parameters

Product Name Stainless Steel Sheet/Plate
CommodityAustenitic, Ferritic, Martensitic, Duplex, Cold rolled, Hot rolled
SizeThickness0.1-200mm
Width10-2000mm
Length1000mm-11000mm or as customer' s requirement
Grade201, 202, 301, 304, 304L, 347, 321, 309S, 310S, 316L,2205, 409,410, 410S, 420, 420j1, 420j2, 430, 439, 443, 444,32760,32750,904L etc
Austenitic stainless steel200 Series: 201, 202
300 Series: 304, 304L, 309S, 310S, 316, 316L, 316Ti, 317L, 321, 347
Ferritic stainless steel409L, 430, 436, 439, 441, 444, 446
Martensitic stainless steel410, 410S, 416, 420J1, 420J2, 431,440,17-4PH
Duplex and Special Stainless:S31803, S32205, S32750, 630, 904L
StandardISO, JIS, ASTM, AS, EN, GB,DIN, JIS etc
surfaceN0.1, N0.4, 2D, 2B, HL, BA, 6K, 8K, etc


Common surfaces




Chemical Properties of Frequently-used



UNSASTMENJISC%Mn%P%S%Si%Cr%Ni%Mo%
S201002011.4372SUS201≤0.155.5-7.5≤0.06≤0.03≤1.0016.0-18.03.5-5.5-
S202002021.4373SUS202≤0.157.5-10.0≤0.06≤0.03≤1.0017.0-19.04.0-6.0-
S301003011.4319SUS301≤0.15≤2.00≤0.045≤0.03≤1.0016.0-18.06.0-8.0-
S304003041.4301SUS304≤0.08≤2.00≤0.045≤0.03≤0.7518.0-20.08.0-10.5-
S30403304L1.4306SUS304L≤0.03≤2.00≤0.045≤0.03≤0.7518.0-20.08.0-12.0-
S30908309S1.4833SUS309S≤0.08≤2.00≤0.045≤0.03≤0.7522.0-24.012.0-15.0-
S31008310S1.4845SUS310S≤0.08≤2.00≤0.045≤0.03≤1.5024.0-26.019.0-22.0-
S316003161.4401SUS316≤0.08≤2.00≤0.045≤0.03≤0.7516.0-18.010.0-14.02.0-3.0
S31603316L1.4404SUS316L≤0.03≤2.00≤0.045≤0.03≤0.7516.0-18.010.0-14.02.0-3.0
S31703317L1.4438SUS317L≤0.03≤2.00≤0.045≤0.03≤0.7518.0-20.011.0-15.03.0-4.0
S321003211.4541SUS321≤0.08≤2.00≤0.045≤0.03≤0.7517.0-19.09.0-12.0-
S347003471.455SUS347≤0.08≤2.00≤0.045≤0.03≤0.7517.0-19.09.0-13.0-
S405004051.4002SUS405≤0.08≤1.00≤0.04≤0.03≤1.0011.5-14.5≤0.60-
S409004091.4512SUS409≤0.08≤1.00≤0.045≤0.03≤1.0010.5-11.75≤0.50-
S430004301.4016SUS430≤0.12≤1.00≤0.040≤0.03≤0.7516.0-18.0≤0.60-
S434004341.4113SUS434≤0.12≤1.00≤0.040≤0.03≤1.0016.0-18.0--
S444004441.4521SUS444L≤0.025≤1.00≤0.045≤0.03≤1.0017.5-19.5≤1.00-
S40300403-SUS403≤0.155.5-7.5≤0.04≤0.03≤0.5011.5-13.0≤0.60-
S4100004101.40006SUS410≤0.15≤1.00≤0.035≤0.03≤1.0011.5-13.5≤0.60≤1.00
S420004201.4021SUS420J10.16~0.25≤1.00≤0.04≤0.03≤1.0012.0-14.0≤0.75≤1.00
S440A440A1.4028SUS440A0.60~0.75≤1.00≤0.04≤0.03≤1.0016.0-18.0-≤0.75
S32750SAD25071.441
≤0.03≤1.2≤0.035≤0.02≤0.8024.0-26.06.0-8.03.0-5.0
S31803SAF22051.4462
≤0.03≤2.0≤0.03≤0.02≤1.0021.0-23.04.0-6.52.5-3.5
N08904904L1.4539
≤0.0.3≤2.0≤0.035≤0.03≤1.0018.0-20.023.0-25.03.0-4.0




Product Display

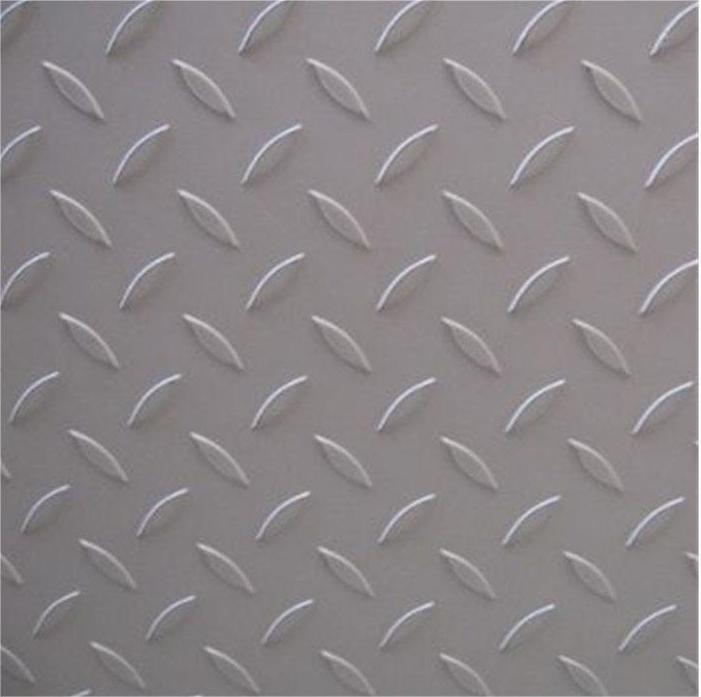

stainless steel plate display.jpg


→ Packing and shipping

→ FAQ

Q: How do you control quality ?
A: Mill test certification is supplied with shipment, third party inspection is available. And we also get ISO, SGS, Alibaba Verified.

Q: How many coutries you already exported ?
A: We have become trade partners with more than 50 countries around the world, mainly exporting to the United States, Russia, Britain, Kuwait, Egypt, Türkiye, Jordan, India, etc.

Q: Can you provide sample ?
A: Of course! As long as you contact us, we can provide free inventory samples. Customized samples take approximately 5-10 days.

Q: How can I know the price accurately?
A: You can contact me on WhatsApp, call me, or send us an email online form to let us know your product specifications.

Q: What is your MOQ?
A: Usually 15 tons, but adjustments will also be made based on the product or your needs, as well as the actual inventory situation.

Q: How long is your delivery time?
A: The products will be delivered ASAP on the basis of the quality assurance. Generally, samples order's delivery time is 5-10 days. Container orders are about 15-20 days.

Q: What are the advantages of your company ?
A: We have many professionals, technical personnel, more competitive prices and best after-dales service than other metal materials companies.
